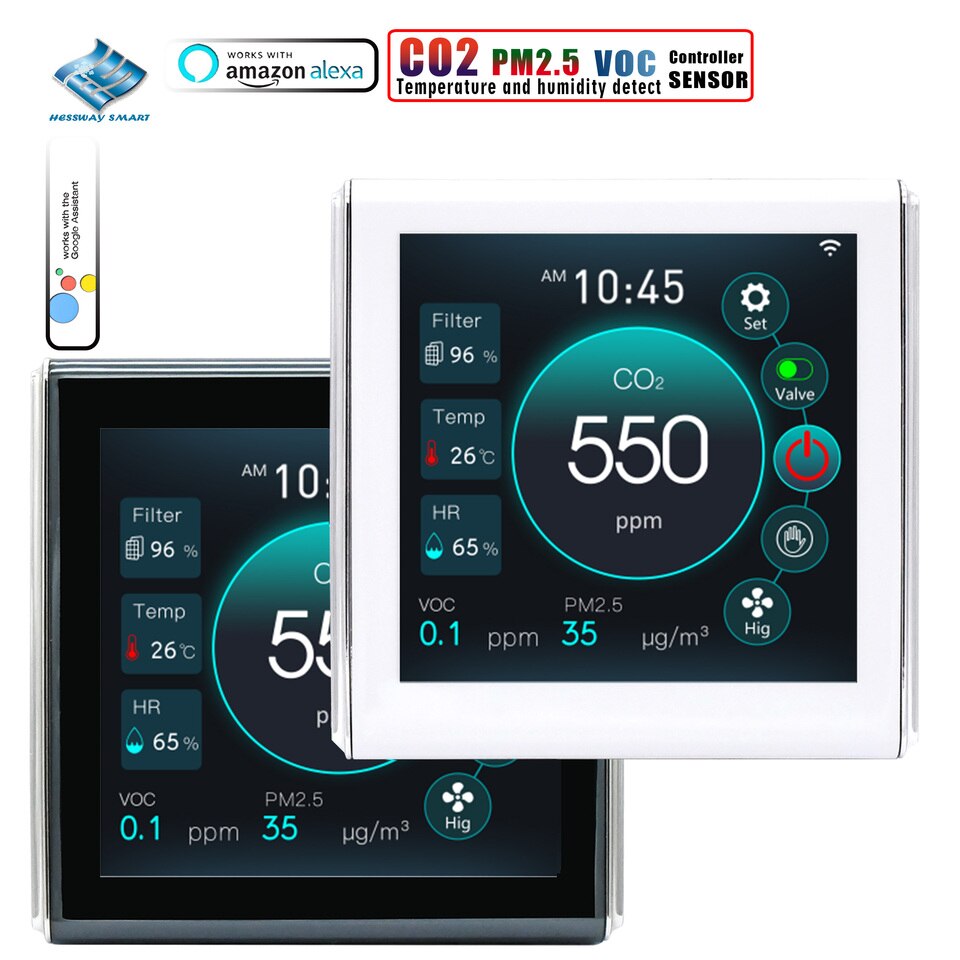

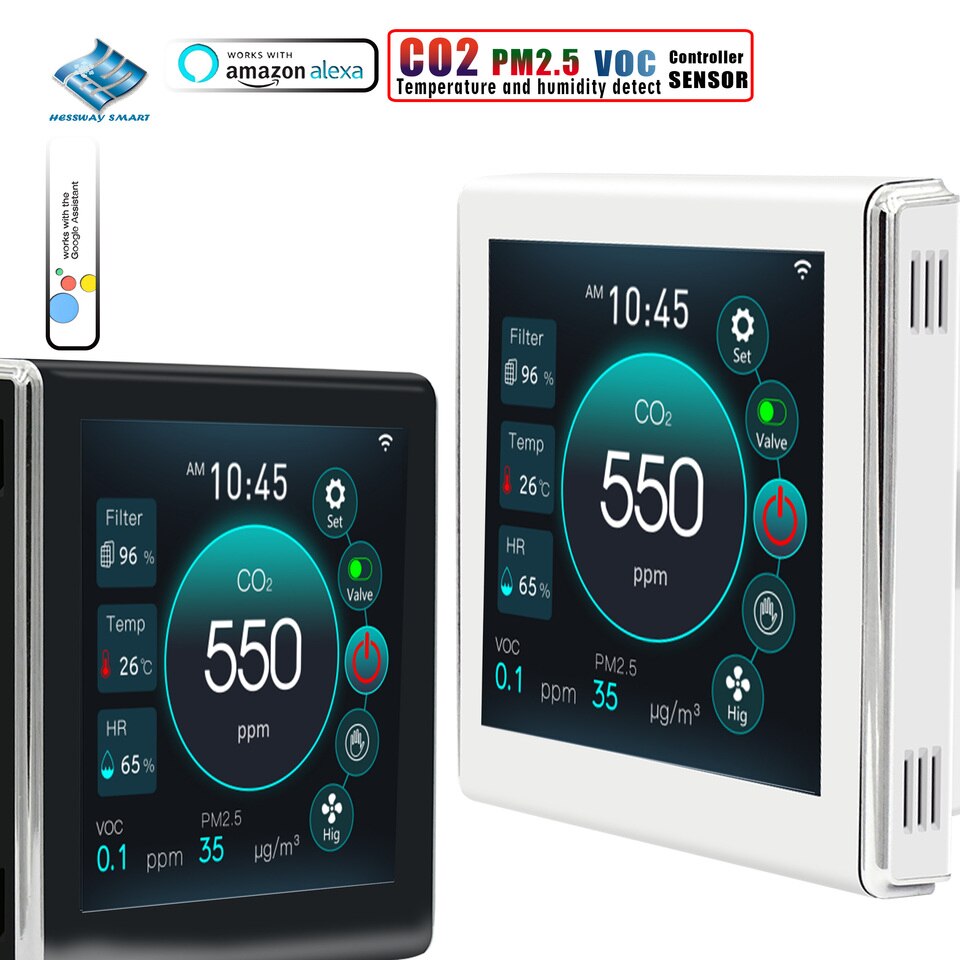

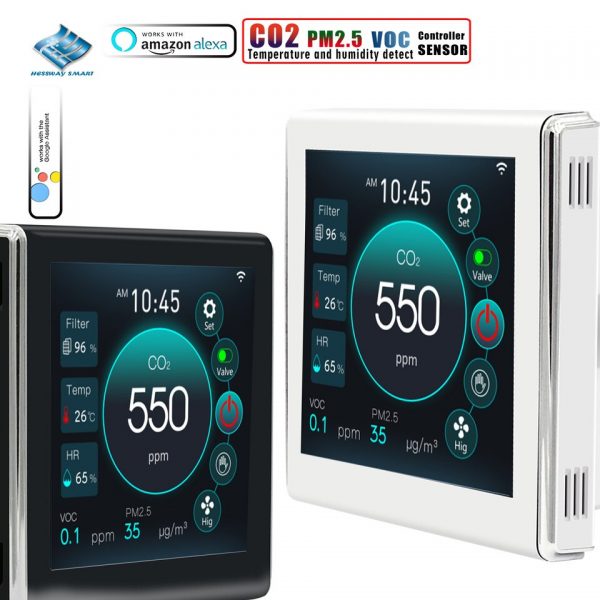

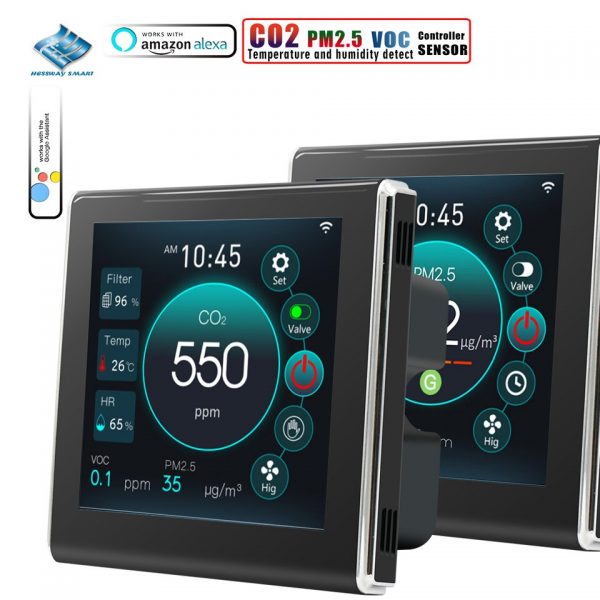

CO2&PM2.5&VOC Sensor Air Quality Analyzer for TUYA WIFI Intelligent Linkage Fresh Air Control system RS485 AC Fan /DC 0-10V

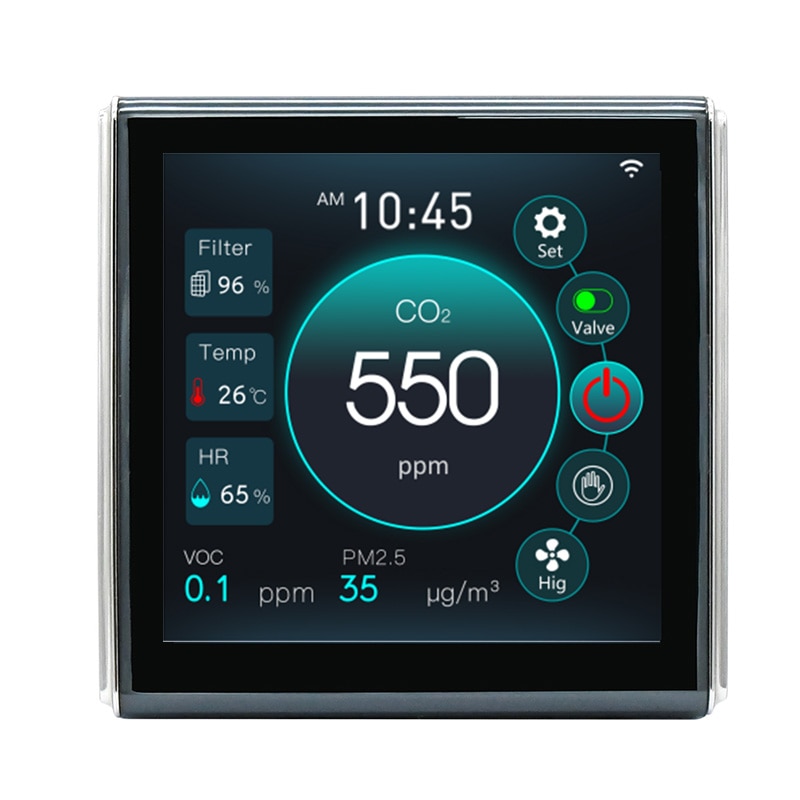

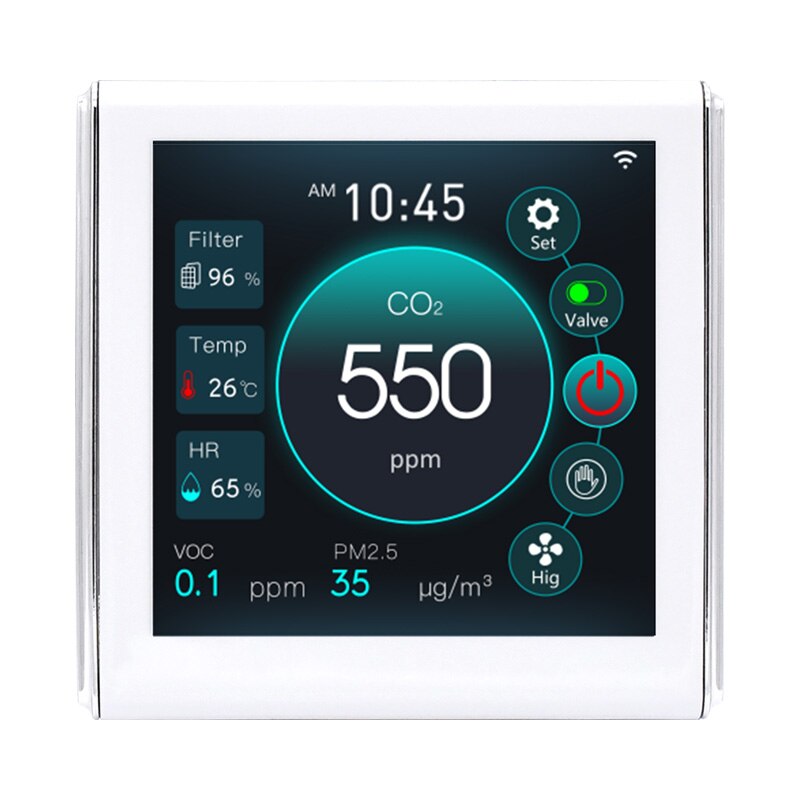

G9 series integrate PM2.5, CO2,VOC, temperature, humidity and other sensors smart Ventilation System controller, it uses industrial-grade True Color, imported tempered glass panel, high-sensitivity touch button design. It embeds WIFI module RS485 module, remote access and control, they communicate with smart home, building intelligent control, etc. It controls the start and stop of the output AC fan and valve through the relay; optional output 0-10V proportional control (support valve or fan or other proportional equipment) .
It can be widely used in residential, commercial and industrial applications, and can effectively improve air quality so as to create a healthy, comfortable, energy-efficient living and working environment.
Features
CO2, PM2.5, VOC sensor control output
Operating mode: Automatic,manual,timing
Fan speed mode:High,medium,low and automatic Fan speed/0-10V proportional Fan output
Weekly Timing output different fan speeds
Timing off/on
RS485 communication
TUYA WIFI mobile APP control
Restore power memory function
Fresh air system filter alarm
Screen energy saving mode switch
Screen backlight brightness adjustment
Screen automatically saves energy and prolongs the life of the color screen;
Time display
Temperature display
Humidity display
Bypass valve manual or automatic control
Output AC fan switch control (optional)：High,medium,low output
Output DC fan 0-10V control(optional)：0-10V proportional Fan(valve) output
Parameter
|
Project |
ProjectUnit |
Parameter value |
|
Power supply |
VAC |
95～240 |
|
CO2 Adjustment range |
PPM |
500～4000 |
|
CO2 Displayrange |
PPM |
0～5000 |
|
PM2.5 Adjustmentrange |
μg/m |
0-500 |
|
PM2.5 Display range |
μg/m |
0-500 |
| VOC Adjustmentrange | PPM | 0-5.0 |
| VOC Display range | PPM | 0-5.0 |
|
Sensor warm-up time |
min |
2 |
|
Response time |
s |
≤10 |
|
Temperature display range |
℃ |
0～99 |
|
Humidity display range |
%RH |
5～90 |
|
Control power: |
W |
≤200 |
|
Rated Power |
W |
<2 |
|
Output Interface |
3-speed fan |
AC output，DC 0-10V Optional |
|
Dimensions |
MM |
80×80×40mm/L×H×D |
|
Wirings |
MM2 |
2 x 1.5 or 1 x 2.5 |
|
Install hole spacing |
MM/In |
60±5MM/2.36±0.2In |
|
Protection Class |
IP |
30 |
|
Flame retardant rating |
Level |
V0 |
1 * Ventilator Controller（Optional AC FAN version, DC FAN 0~10V version）
2 * Screws
1 * User manual(EN)
1 * Retail box
